eicrecon::ChargedCandidateMaker Class Reference

#include <ChargedCandidateMaker.h>

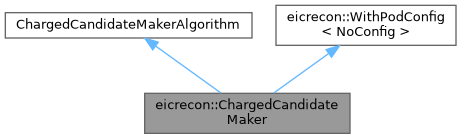

Inheritance diagram for eicrecon::ChargedCandidateMaker:

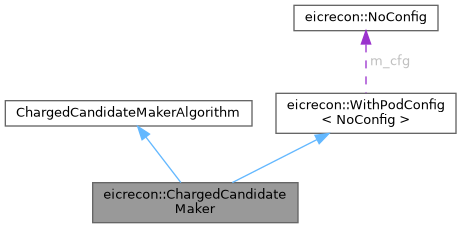

Collaboration diagram for eicrecon::ChargedCandidateMaker:

Public Member Functions
	ChargedCandidateMaker (std::string_view name)
	! Algorithm constructor
void	process (const Input &, const Output &) const final
Public Member Functions inherited from eicrecon::WithPodConfig< NoConfig >
NoConfig &	getConfig ()
	Get a configuration to be changed.
NoConfig &	applyConfig (NoConfig cfg)
	Sets a configuration (config is properly copyible)

Additional Inherited Members
Public Types inherited from eicrecon::WithPodConfig< NoConfig >
using	ConfigType = NoConfig
Protected Attributes inherited from eicrecon::WithPodConfig< NoConfig >
NoConfig	m_cfg

Detailed Description

An algorithm which takes a collection of track-cluster matches and converts them into charged-particle candidates, one for each track.

Constructor & Destructor Documentation

ChargedCandidateMaker()

eicrecon::ChargedCandidateMaker::ChargedCandidateMaker ( std::string_view  name )

inline

! Algorithm constructor

Member Function Documentation

process()

void eicrecon::ChargedCandidateMaker::process ( const Input &  , const Output &    ) const

final

Construct a candidate charged particle via the following algorithm.

1. Build map of tracks onto vectors of their matched clusters
2. For each track, create a Reconstructed Particle with track and cluster relations filled

---

The documentation for this class was generated from the following files:

• src/algorithms/particle_flow/ChargedCandidateMaker.h
• src/algorithms/particle_flow/ChargedCandidateMaker.cc
